I’m building a multi-task-learning network (Segmentation and Depth) and for that I choose U-Net Architecture. I used common encoder , separate bottle-neck and decoder. The issue I found after debugging is; I have defined two nn.ModuleList() , one for decoder_seg and another for decoder_depth; in both of them I have added layers ; but while looping through layers in forward() method, it’s only looping through decoder_seg but not through decoder_depth (it’s length is showing 0), although both are build in similar way
Here’s the code:
import torch
import torch.nn as nn
import torchvision.transforms.functional as F
import torch.optim
class IntermediateBlocks(nn.Module):
def __init__(self, block_in_channels, block_out_channels):
super(IntermediateBlocks, self).__init__()
self.block = nn.Sequential(
nn.Conv2d(block_in_channels, block_out_channels,
kernel_size=3, stride=1, padding=1, bias=False),
nn.BatchNorm2d(block_out_channels),
nn.ReLU(inplace=True),
nn.Conv2d(block_out_channels, block_out_channels,
kernel_size=3, stride=1, padding=1, bias=False),
nn.BatchNorm2d(block_out_channels),
nn.ReLU(inplace=True),
)
def forward(self, x):
return self.block(x)
class DepthSegmentation(nn.Module):
def __init__(self, in_channels=3, out_channels=3, intermediate_channels=None):
super(DepthSegmentation, self).__init__()
self.out_channels = out_channels
if intermediate_channels is None:
intermediate_channels = [64, 128, 256, 512]
""" ---------------- Down-Sampling Layers --------------- """
self.encoder = nn.ModuleList()
for num_channels in intermediate_channels:
self.encoder.append(IntermediateBlocks(block_in_channels=in_channels, block_out_channels=num_channels))
in_channels = num_channels
self.pool = nn.MaxPool2d(kernel_size=2, stride=2)
""" ---------------- Bottle Neck Layers ------------------ """
# One for Segmentation
self.bottleneck_seg = IntermediateBlocks(intermediate_channels[-1], intermediate_channels[-1] * 2)
# one for Depth Estimation
self.bottleneck_depth = IntermediateBlocks(intermediate_channels[-1], intermediate_channels[-1] * 2)
""" ----------------- Up-Sampling Layers ---------------- """
self.decoder_intermediate_channels = reversed(intermediate_channels) # [512, 256, 128, 64]
# for segmentation
self.decoder_seg = nn.ModuleList()
for num_channels in self.decoder_intermediate_channels:
self.decoder_seg.append(
nn.ConvTranspose2d(
num_channels * 2, num_channels, kernel_size=2, stride=2
)
)
self.decoder_seg.append(IntermediateBlocks(num_channels * 2, num_channels))
# for depth estimation
self.decoder_depth = nn.ModuleList()
for num_channels in self.decoder_intermediate_channels:
self.decoder_depth.append(
nn.ConvTranspose2d(
num_channels * 2, num_channels, kernel_size=2, stride=2
)
)
self.decoder_depth.append(IntermediateBlocks(num_channels * 2, num_channels))
""" -------------------- Final Layers ---------------------"""
self.final_seg = nn.Conv2d(
in_channels=intermediate_channels[0], out_channels=self.out_channels,
kernel_size=1, stride=1, padding=0)
self.final_depth = nn.Conv2d(
in_channels=intermediate_channels[0], out_channels=self.out_channels,
kernel_size=1, stride=1, padding=0)
def forward(self, x):
skip_connections_layers = []
for layers in self.encoder:
# First, processing it through Intermediate Block consisting of few conv layers
x = layers(x)
""" Since, the encoder was made from few IntermediateBlocks,---
so for getting the skip_connections_layers (for concatenation in Decoder part),
--- we are going to append the last layer of each IntermediateBlocks """
skip_connections_layers.append(x) # here the x supplied is from last layer of each Intermediate Block
# MaxPooling is applied after every Intermediate Blocks (for Down-Sampling)
x = self.pool(x)
common_encoder_seg_output = x
common_encoder_depth_output = x
seg_out = self.bottleneck_seg(common_encoder_seg_output)
depth_out = self.bottleneck_depth(common_encoder_depth_output)
# As, every up-sampled layer need to be concatenated with last element(layer) present in
# skip_connections_layers list so, it's better to reverse the list
skip_connections_layers = skip_connections_layers[::-1]
""" Since, self.decoder_seg is like ==>
# [convTranspose2D, IntermediateBlocks, convTranspose2D, IntermediateBlocks, ..... ]
# Here, the concatenation will be happening with only convTranspose2D layers, therefore
# while looping, we have to use step = 2 """
print(f'Length of decoder_depth: {len(self.decoder_depth)}')
print(f'Length of decoder_seg: {len(self.decoder_seg)}',"\n")
for i_seg in range(0, len(self.decoder_seg), 2):
print(f"seg_out - Before {i_seg // 2} convTranspose2D: {seg_out.shape}")
# First processing with convTranspose2D
seg_out = self.decoder_seg[i_seg](seg_out)
print(f"seg_out - After {i_seg // 2} convTranspose2D: {seg_out.shape}")
required_skip_layer = skip_connections_layers[i_seg // 2]
# While concatenation, we set dim = 1, because we want to do it along depth(channels)
# Since a batch consist of ==> (batch_size, channels_dim, height, width)
# Also, we need to make sure the shape matches
if seg_out.shape != required_skip_layer.shape:
# [2:] ==> height, width
seg_out = F.resize(seg_out, size=required_skip_layer.shape[2:])
concatenated_layer_seg = torch.cat((required_skip_layer, seg_out), dim=1)
print(f"seg_out - Before {i_seg // 2} IntermediateBlocks: {seg_out.shape}")
# After that, processing with IntermediateBlocks
seg_out = self.decoder_seg[i_seg + 1](concatenated_layer_seg)
print(f"seg_out - After {i_seg // 2} IntermediateBlocks: {seg_out.shape}", '\n')
print(f'seg_out - Before passing to final layer: {seg_out.shape}')
print("\n",f'Length of decoder_depth: {len(self.decoder_depth)}')
# Similarly for Depth Estimation head
for i_depth in range(0, len(self.decoder_depth), 2):
print(f"Before depth_out: {depth_out.shape}")
# First processing with convTranspose2D
depth_out = self.decoder_depth[i_depth](depth_out)
print(f"After depth_out: {depth_out.shape}")
required_skip_layer = skip_connections_layers[i_depth // 2]
if depth_out.shape != required_skip_layer.shape:
# [2:] ==> height, width
depth_out = F.resize(depth_out, size=required_skip_layer.shape[2:])
concatenated_layer_depth = torch.cat((required_skip_layer, depth_out), dim=1)
# After that, processing with IntermediateBlocks
depth_out = self.decoder_depth[i_depth + 1](concatenated_layer_depth)
print(f"After concatenated_layer_depth: {depth_out.shape}")
return self.final_seg(seg_out), self.final_depth(depth_out)
# Dummy Input
input_batch = torch.randn((16, 3, 160, 160))
model = DepthSegmentation(in_channels=3, out_channels=3, intermediate_channels=[64,128,256,512])
seg_output, depth_output = model(input_batch)
print(seg_output.shape)
print(depth_output.shape)
This is the error I got :
RuntimeError: Given groups=1, weight of size [3, 64, 1, 1], expected input[16, 1024, 10, 10] to have 64 channels, but got 1024 channels instead.

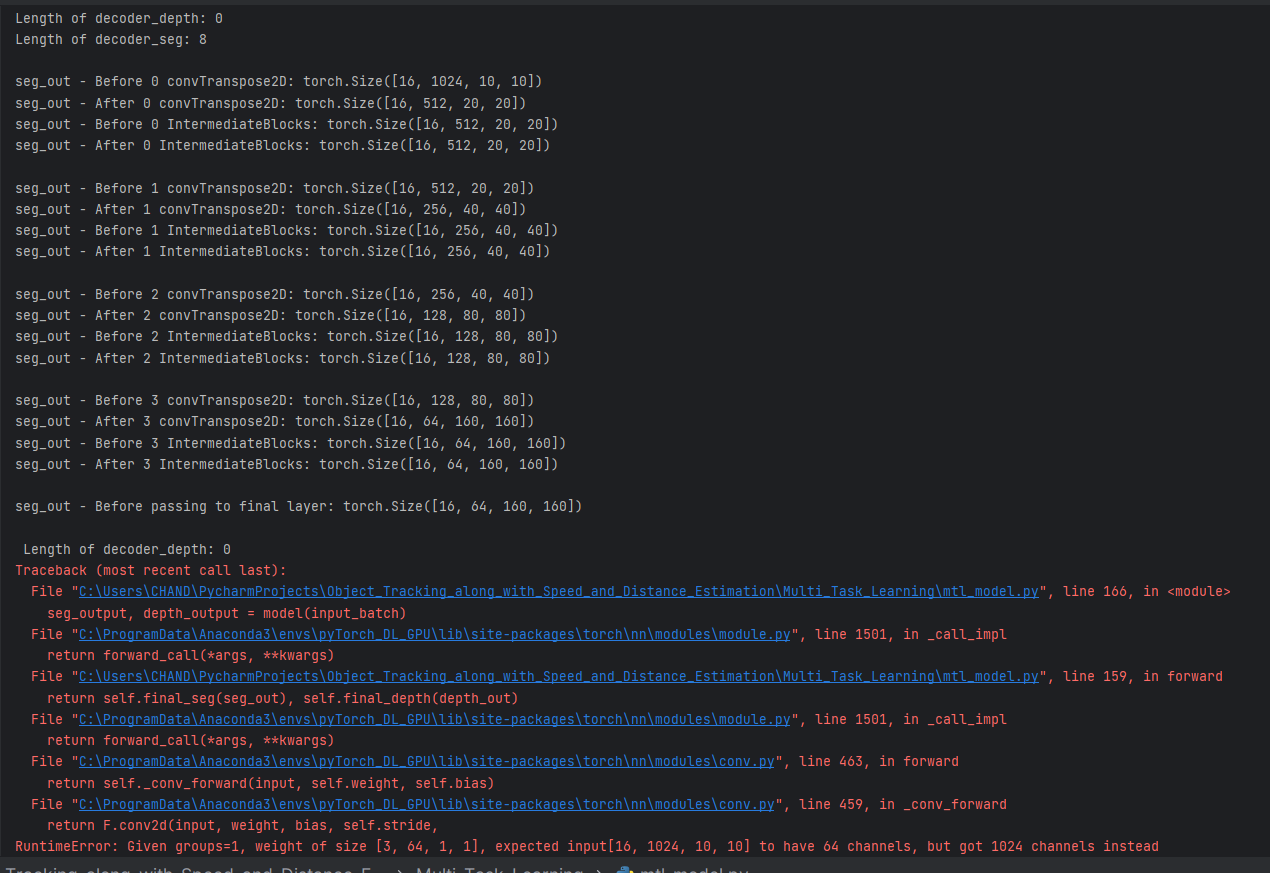

This is full error with debugging output:
