I am training a model for multiclass segmentation problem. I have 3 classes with image size of 512x512 and 1 channel. My dataset has imbalanced classes. The issue is that the model is not performing well for the multiclass segmentation.
I have tried with Cross Entropy Loss, Dice Loss, Jaccard Loss, and combination of Losses (Jaccard + Focal).
Cross Entropy is working fine but results are not satisfactory.
What changes should I made in it?
Below is the code of the model
class AxialDW(nn.Module):
def __init__(self, dim, mixer_kernel, dilation=1):
super().__init__()
h, w = mixer_kernel
self.dw_h = nn.Conv2d(dim, dim, kernel_size=(h, 1), padding=(max(h // 2, dilation), 0), groups=dim, dilation=dilation)
self.dw_w = nn.Conv2d(dim, dim, kernel_size=(1, w), padding=(0, max(w // 2, dilation)), groups=dim, dilation=dilation)
def forward(self, x):
x = x + self.dw_h(x) + self.dw_w(x)
return x
class EncoderBlock(nn.Module):
"""Encoding then downsampling"""
def __init__(self, in_c, out_c, mixer_kernel=(7, 7)):
super().__init__()
self.dw = AxialDW(in_c, mixer_kernel=(7, 7))
self.bn = nn.BatchNorm2d(in_c)
self.pw = nn.Conv2d(in_c, out_c, kernel_size=1)
self.down = nn.MaxPool2d((2, 2))
self.act = nn.GELU()
def forward(self, x):
skip = self.bn(self.dw(x))
x = self.act(self.down(self.pw(skip)))
return x, skip
class DecoderBlock(nn.Module):
"""Upsampling then decoding"""
def __init__(self, in_c, out_c, mixer_kernel=(7, 7)):
super().__init__()
self.up = nn.Upsample(scale_factor=2)
self.pw = nn.Conv2d(in_c + out_c, out_c, kernel_size=1)
self.bn = nn.BatchNorm2d(out_c)
self.dw = AxialDW(out_c, mixer_kernel=(7, 7))
self.act = nn.GELU()
self.pw2 = nn.Conv2d(out_c, out_c, kernel_size=1)
def forward(self, x, skip):
x = self.up(x)
x = torch.cat([x, skip], dim=1)
x = self.act(self.pw2(self.dw(self.bn(self.pw(x)))))
return x
class BottleNeckBlock(nn.Module):
"""Axial dilated DW convolution"""
def __init__(self, dim):
super().__init__()
gc = dim // 4
self.pw1 = nn.Conv2d(dim, gc, kernel_size=1)
self.dw1 = AxialDW(gc, mixer_kernel=(3, 3), dilation=1)
self.dw2 = AxialDW(gc, mixer_kernel=(3, 3), dilation=2)
self.dw3 = AxialDW(gc, mixer_kernel=(3, 3), dilation=3)
self.bn = nn.BatchNorm2d(4 * gc)
self.pw2 = nn.Conv2d(4 * gc, dim, kernel_size=1)
self.act = nn.GELU()
def forward(self, x):
x = self.pw1(x)
x = torch.cat([x, self.dw1(x), self.dw2(x), self.dw3(x)], 1)
x = self.act(self.pw2(self.bn(x)))
return x
class ULite(nn.Module):
def __init__(self, freeze_model, num_classes=3):
super().__init__()
"""Encoder"""
self.conv_in = nn.Conv2d(1, 16, kernel_size=7, padding=3)
self.e1 = EncoderBlock(16, 32)
self.e2 = EncoderBlock(32, 64)
self.e3 = EncoderBlock(64, 128)
self.e4 = EncoderBlock(128, 256)
self.e5 = EncoderBlock(256, 512)
"""Bottle Neck"""
self.b5 = BottleNeckBlock(512)
"""Decoder"""
self.d5 = DecoderBlock(512, 256)
self.d4 = DecoderBlock(256, 128)
self.d3 = DecoderBlock(128, 64)
self.d2 = DecoderBlock(64, 32)
self.d1 = DecoderBlock(32, 16)
self.conv_out = nn.Conv2d(16, num_classes, kernel_size=1)
if freeze_model:
self.freeze_model()
def forward(self, x):
"""Encoder"""
x = self.conv_in(x)
x, skip1 = self.e1(x)
x, skip2 = self.e2(x)
x, skip3 = self.e3(x)
x, skip4 = self.e4(x)
x, skip5 = self.e5(x)
"""BottleNeck"""
x = self.b5(x) # (512, 8, 8)
"""Decoder"""
x = self.d5(x, skip5)
x = self.d4(x, skip4)
x = self.d3(x, skip3)
x = self.d2(x, skip2)
x = self.d1(x, skip1)
x = self.conv_out(x)
# Apply softmax for multi-class classification
x = F.softmax(x, dim=1)
return x
def freeze_model(self):
for name, param in self.named_parameters():
param.requires_grad = False

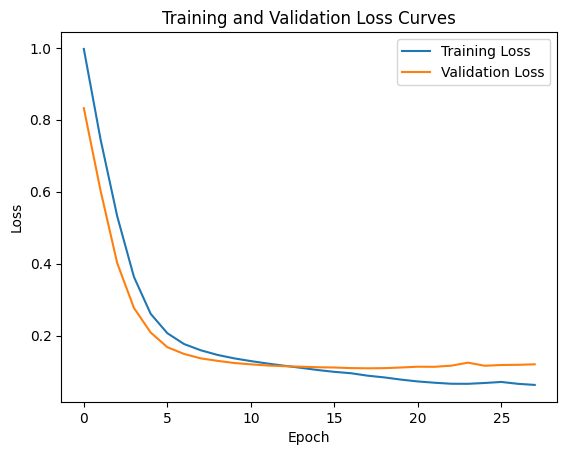

Jaccard + Focal Loss

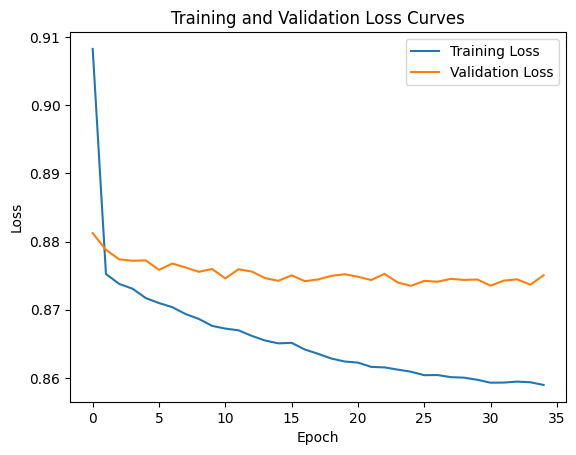

Jaccard Loss
