Multiply sub-model by known input parameters

autograd
1

Hi I’m a newbie in Pytorch.

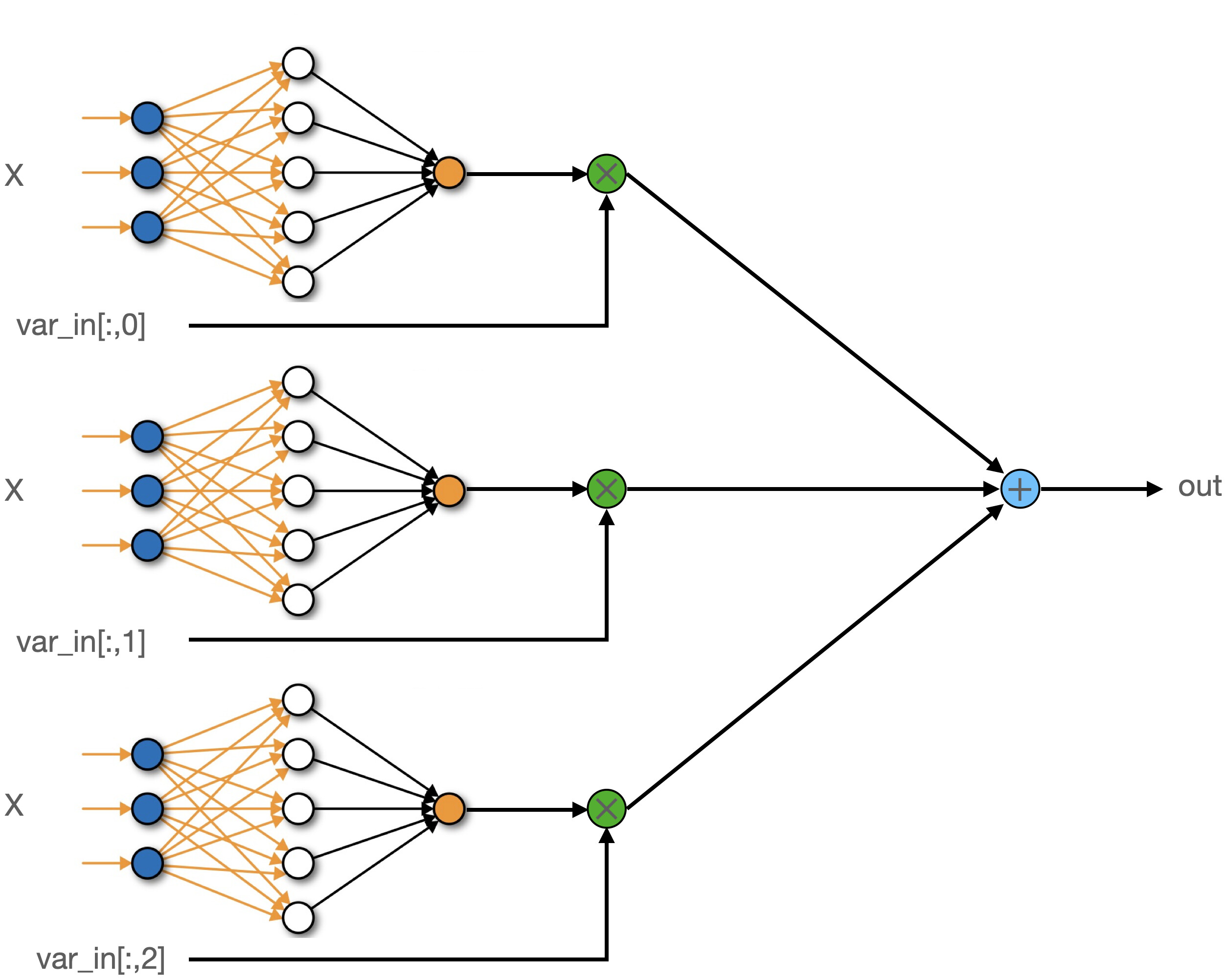

I try to create a trainable model having a fixed multiplication and addition operation to the sub-models, which shown as below.

image2510×2004 346 KB

Here tensor X is training data, and var_in is also an input tensor varying by each set of training data used to multiple the output of the sub-model.

Below is my attempt. But I don’t get a reasonable result.
Is there anything wrong here? Or is it possible to achieve a model like this?
Thanks for any suggestion.


class Model(nn.Module):
    def __init__(self):
        super(Model, self).__init__()
        self.l1_1 = nn.Linear(3, 600)
        self.l2_1 = nn.Linear(600, 200)
        self.l3_1 = nn.Linear(200, 1)

        self.l1_2 = nn.Linear(3, 600)
        self.l2_2 = nn.Linear(600, 200)
        self.l3_2 = nn.Linear(200, 1)

        self.l1_3 = nn.Linear(3, 600)
        self.l2_3 = nn.Linear(600, 200)
        self.l3_3 = nn.Linear(200, 1)


    def forward(self, x, var_in):
        out_1 = F.relu(self.l1_1(x))
        out_1 = F.relu(self.l2_1(out_1))
        out_1 = self.l3_1(out_1)

        out_2 = F.relu(self.l1_2(x))
        out_2 = F.relu(self.l2_2(out_2))
        out_2 = self.l3_2(out_2)

        out_3 = F.relu(self.l1_3(x))
        out_3 = F.relu(self.l2_3(out_3))
        out_3 = self.l3_3(out_3)

        Finalout = var_in[:,0].view(-1,1) * out_1 + var_in[:,1].view(-1,1) * out_2 + var_in[:,2].view(-1,1) * out_3

        return Finalout


y_pred = model.forward(TrainData_input,Var_in)
l = loss(y_pred, TrainData_output)
l.backward()
2

Your code looks correct besides the explicit forward call, which is unrelated to your issue. Call the model instead via y_pred = model(TrainData_input, Var_in) to make sure all hooks are used. Note that this is a general recommendation and won’t fix your code as no hooks are used.

3

Hey ptrblck,
Thanks for your reply.
I’m doubting this code has some problems because that I use the same training data to verify the model’s prediction, the model output is off (it yield to a similar shape but with a large offset) although the loss become small (like 0.001) after 10000 epoch of learning.
