Why my network classifies each sample as the same class?

As dataset I am using npz files. One npz file represents one video and contains keypoints (x,y, confidence score). I am trying to build 1D CNN network that will classifies those npz sample to one of the classes. I notices that no matter what I try I am always getting quite the same result. Loss decreases only little bit and validation accuracy is constant. When checking outputs, I saw that at the end network classifies all samples as the class 2. I assume that reason for that is, that the class 2 has the largest number of samples.

I tried several things to improve the model but no success:
a) two different models (both contain 1D CNN layers, but have different receiptive fields)
b) class weights in cross entropy loss because of my unbalanced dataset
c) adding LSTM

All of this did lead only to a slight changes, but all in all my training loss never goes under 1.7.

Can someone give me tip what could be wrong here?

class Dilated_blocks(nn.Module):
    def __init__(self, in_feat, out_feat, stride, dilation):
        super(Dilated_blocks, self).__init__()
        self.dilated_conv = nn.Conv1d(in_feat, out_feat, kernel_size = 3, stride = stride, dilation = dilation, padding = 1)
        self.conv_tranform = nn.Conv1d(out_feat, out_feat, kernel_size = 3, padding = 1)

    def forward(self, x):
        x = self.dilated_conv(x)
        x = self.conv_tranform(x)

        return x

class Net(nn.Module):
    def __init__(self):

        self.conv1 = nn.Conv1d(in_channels = 51, out_channels = 64, kernel_size = 3) #, dilation=2)
        self.batch1 = nn.BatchNorm1d(64)

        self.conv_block2 = Dilated_blocks(in_feat = 64,out_feat = 128, stride = 2, dilation = 2)
        self.batch2 = nn.BatchNorm1d(128)

        self.conv_block3 = Dilated_blocks(in_feat = 128, out_feat = 256, stride = 2, dilation = 2)
        self.batch3 = nn.BatchNorm1d(256)

        self.lstm_extractor = nn.LSTM(input_size=256, hidden_size=512, num_layers=10,
                                      dropout=0.2, batch_first=True)

        self.relu = nn.ReLU()
        self.pool = nn.MaxPool1d(2)
        self.flat = nn.Flatten()
        self.fc1 = nn.Linear(512, 256)
        self.fc2 = nn.Linear(256, n_outputs)

    def forward(self, x):
        x = self.conv1(x)
        x = self.relu(x)
        x = self.batch1(x)

        x = self.conv_block2(x)
        x = self.relu(x)
        x = self.batch2(x)

        x = self.conv_block3(x)
        x = self.relu(x)
        x = self.batch3(x)

        out = x.permute(0, 2, 1)

        out, (ht, ct) = self.lstm_extractor(out)

        out = ht[-1]

        out = self.flat(out)

        out = self.fc1(out)
        out = self.fc2(out)
        return F.softmax(out, dim = 1)
weights = tensor([ 6.8684,  4.1429, 11.8636, 20.0769,  5.4375,  7.4571, 10.4400, 15.3529])
criterion = nn.CrossEntropyLoss(weight = classes_distribution.to(device))

optimizer = torch.optim.Adam(model.parameters(), lr = lr)
            for iterat, data in enumerate(train_dataloader):


                poses = data[0].type(torch.float).permute(0,2,1).to(device) # shape [48, 51, 45] = [batch size, input features, sample size]
                labels = data[1].type(torch.long).to(device) # shape [48, 45] = [batch size, sample size]

                #getting labels in the right format for loss function
                most_frequent_values = torch.mode(labels, dim=1).values #shape [48] = [batch_size] -> one label for each npz file in batch

                outputs = model(poses) #shape [48, 8] = [batch size, num of classes]

                loss = criterion(outputs, most_frequent_values)
                running_loss += loss.item()



                acc = torchmetrics.functional.accuracy(outputs, most_frequent_values, task = 'multiclass', num_classes=8)
                accuracy += acc.item()

nn.CrossEntropyLoss expects raw logits while you are passing probabilities. Remove the F.softmax call from your model and it might already improve the training. Also, the higher the weight the more the model gets punished for misclassifying it. Use the class frequencies as the weights.

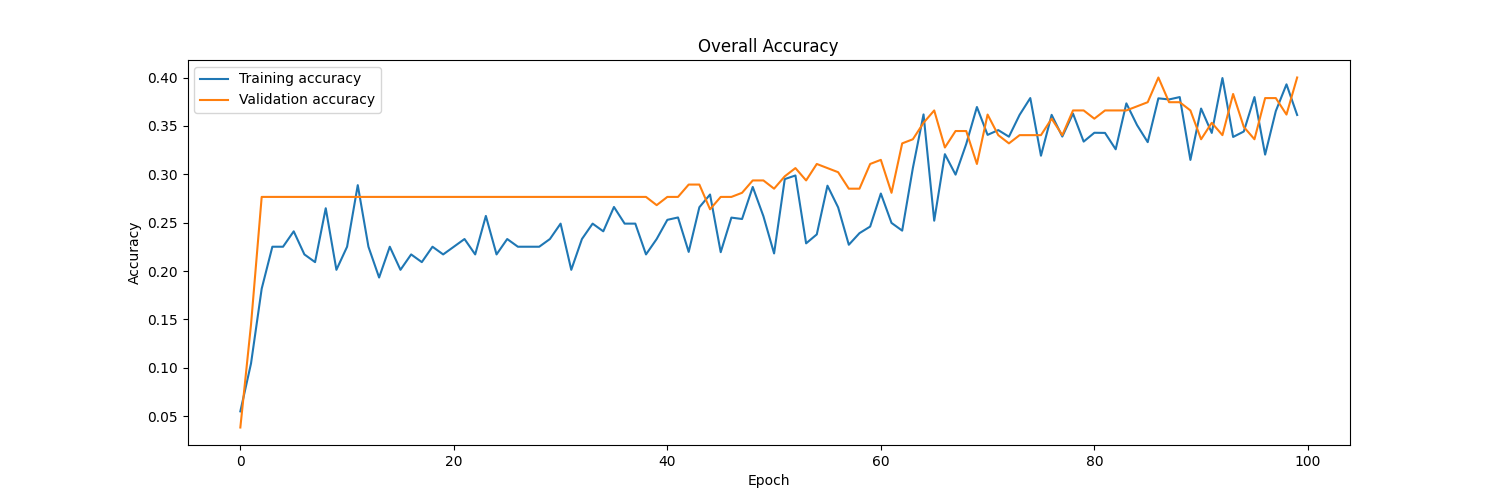

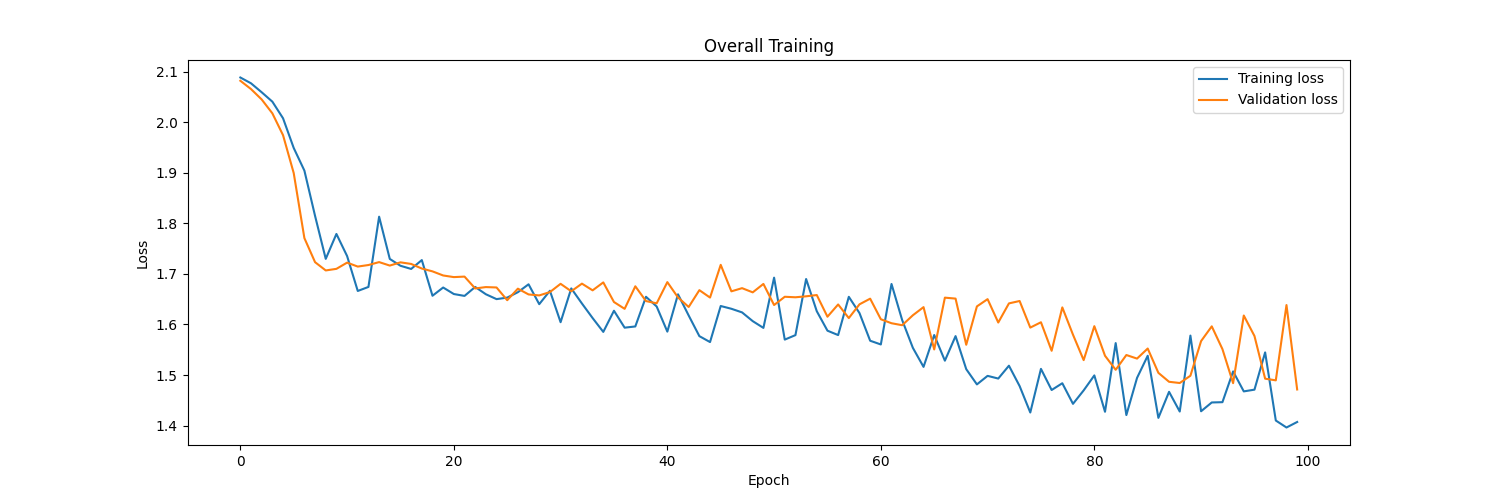

Thanks! I tried that and now it looks little bit better:

Do you think if I let training for more epochs (e.g., 500-1000), that I could get sufficient loss decrease? Or is the network still too slow with learning…?

It seems the training is still converging so you might let it train for more epochs. However, the actual loss curves look quite noisy. Do you print the loss of the last batch only or is this the average of the losses from an entire epoch?

I am calculating average loss for each epoch.

In that case your dataset seems to be quite small as the accuracy and losses are quite noisy, so you might want to increase the number of samples if possible.


Conclusion: using frequencies as weights and increasing my dataset improved my network!
