1st Minibatch takes abnormally large amount of time - Nvidia Jetson AGX Orin

vision
1

Hi,

I have been trying to train/inference various vision models using Pytorch on the AGX Orin device. Across all 3 vision models (MobileNet, ResNet, Yolov8 (Ultralytics)), I have seen that the 1st minibatch always takes a very long time compared to the rest of the minibatches. Another thing I have noticed is the GPU utilization is 0 until the 1st minibatch is completed and only goes up from 2nd minibatch. Likewise, I notice a significant spike (then pretty stable) in power usage after the 1st minibatch. For example, in the case of MobileNet inferencing, the 1st minibatch takes ~2000 ms where as the rest of them take ~30 ms. I am using a Pytorch dataloader to feed images and using wrapper over jtop for logging minibatch times and other metrics. The Pytorch version I am using is 1.12, CUDA version 11.4 and jtop 4.1.2.

Does anyone know why this is the case?

2

I would imagine that this is related to CUDA and PyTorch CUDA subsystem initialization which may involve compilation. One particular aspect might be whether you have a compute architecture that is not foreseen in the PyTorch build. As far as I understand, that causes CUDA to generate PTX on the fly. Others will know more.

Best regards

Thomas

3

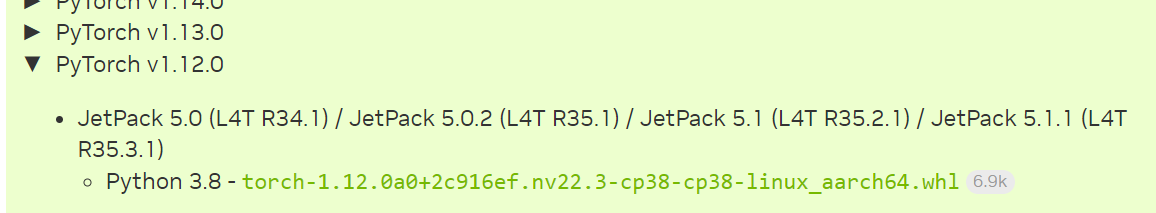

I have built and installed the Nvidia recommended versions of PyTorch and torchvision for my Jetson’s JetPack version (PyTorch for Jetson - Announcements - NVIDIA Developer Forums). I have the R34 (release), REVISION: 1.1 JetPack version and exact pytorch version is 1.12.0a0+2c916ef.nv22.3.

image1156×213 18.1 KB

So I think that GPU’s compute architecture is compatible with the PyTorch build and PyTorch does not need to generate PTX. But in any case, does generation of PTX take so long?

4

Oh right, you’d be using the JetPack that should have it all figured out.
Can you see what processes are taking the CPU during the wait?

5

There arn’t any other process except workload processes running. Also I not worried about CPU utilization… Not sure why GPU is held back until the first minibatch completed.

6

For example, in the case of MobileNet inferencing, the 1st minibatch takes ~2000 ms where as the rest of them take ~30 ms.

I don’t think ~2s to initialize PyTorch and CUDA and infer the first batch is abnormally long and would expect this warmup time.

7

But this is on MAXN mode on the Orin AGX. If we lower the number of cores or memory frequency, I see the first minibatch taking 15 seconds also.

8

Still, 2s is fast and I doubt you can lower it any further as it’s also not specific to Jetson devices.
On an x86 workstation:

time python -c "import torch; x = torch.randn(1)"

real	0m0.881s
user	0m1.590s
sys	0m1.665s


time python -c "import torch; x = torch.randn(1).cuda()"

real	0m0.976s
user	0m1.398s
sys	0m1.913s
