When padding is disabled, network doesn't learn

I’m working on an unsupervised segmentation pipeline which involves first learning a SLIC segmentation with the CNN.

This works as expected when all layers in the network use padding, however, for reasons specific to this pipeline, I would like to not use any padding. Without padding, it seems that the network has trouble learning the very simple SLIC segmentation (which is essentially just a k-means of the pixels in LABXY space, and should be more than learnable by the network).

Note: the input to the network is an image with RGB and XY channels.

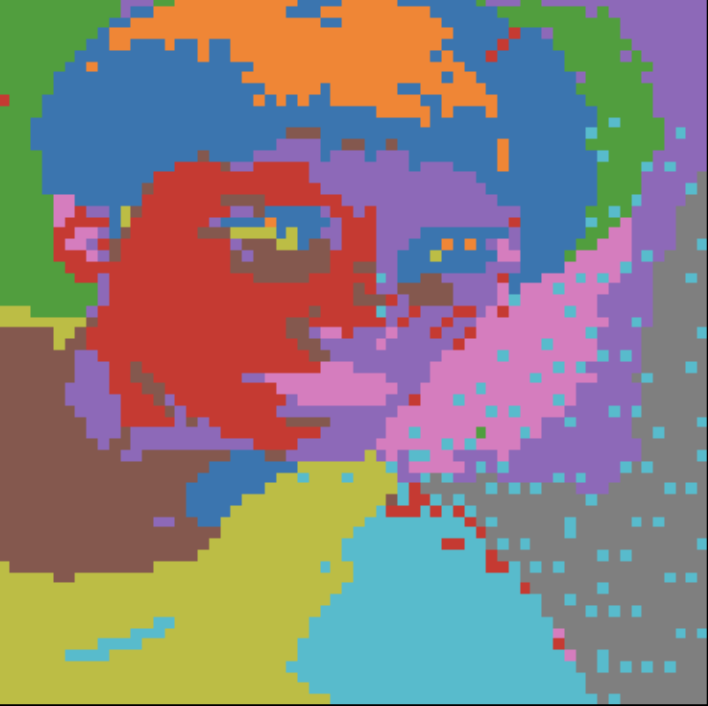

Here’s an example SLIC segmentation (the ground truth for the network):

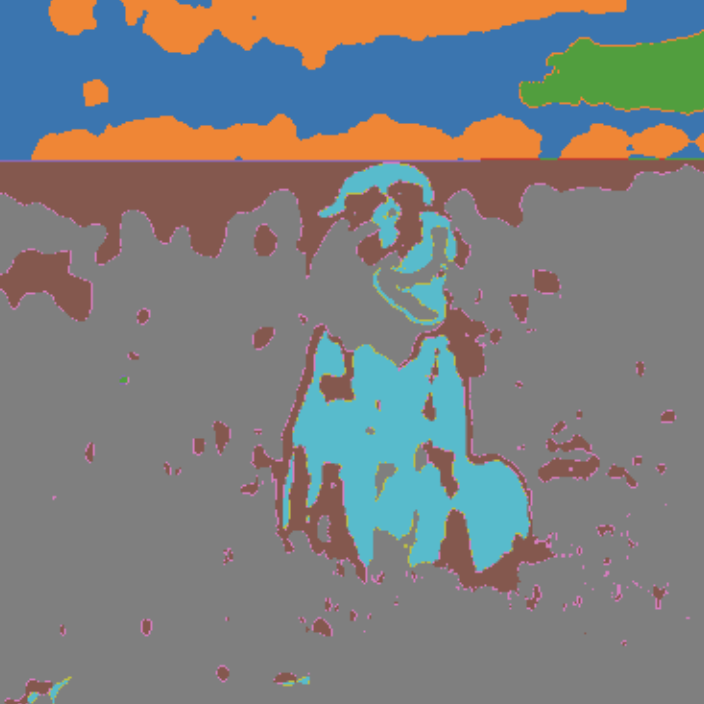

Here’s an example of the network’s progression with padding on:

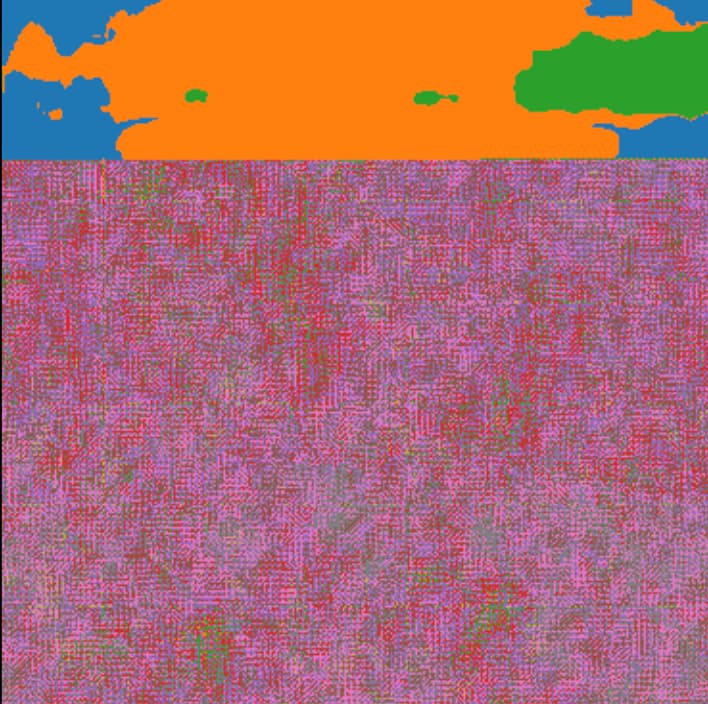

And here’s an example of the network’s progression with padding off:

As you can see, with padding, the model gradually converges to the ground truth, whereas with padding off, the segmentations are much noisier and eventually collapse to just 2 classes rather than 10.

Does anyone have any idea what could be going on here?

I’ve tried replacing the network with both a random forest and a simple linear classifier and it works as expected, so it shouldn’t be an issue of learnability/separability.

Am I encountering some weird edge case bug? Is there a difference in differentiability? Although padding offers spatial information, given that the network receives X and Y channels in addition to RGB, this shouldn’t be an issue, right?

Are there experiments I could run to further debug this?

It’s hard to say what’s going on w/o seeing the network, the layers, the loss function, etc… However, here are some ideas to try:

  1. Are your X and Y values normalized? Ideally, you wouldn’t pass them into the model if you have a ground truth image, since the CNN is spatially aware.
  2. Are you treating this as a regression problem or a multi-class classification problem? If the former, try making it a multi-class problem.
  3. How many parameters does your network have?
  4. Is it overfitting in the first case?
  5. Do you have any non-linearities in your network (goes back to the question about showing the network’s code)?
1 Like

Yes, my X and Y values are normalized to [-1,1]. I didn’t expect to have to add them, but it slightly improved my v_measure score (in my padded version).

I believe I’m treating this as a classification problem, although I’m not sure where I would have specified this. I use torch.nn.CrossEntropyLoss() with integer labels, so I assume that it’s being treated as classification, right?

The network has 1581 parameters.

In the first case it likely is overfitting (somewhat intentionally), and while this isn’t ideal in the short term, I’d like to see that same ability to learn in the unpadded case.

Yes, I do have non-linearities. I’m currently using tanh activations in between each convolution, and I was previously using ReLU, but found better performance with tanh.

1 Like

Yes, my X and Y values are normalized to [-1,1]. I didn’t expect to have to add them, but it slightly improved my v_measure score (in my padded version).

I would either drop them completely or normalize them to be between 0.0 and 1.0 - here’s why (and I could be wrong about this). A negative value effectively signals some sort of negative correlation for those pixels. This is probably not what you intended.

I believe I’m treating this as a classification problem, although I’m not sure where I would have specified this. I use torch.nn.CrossEntropyLoss() with integer labels, so I assume that it’s being treated as classification, right?

Yes, if you’re cross entropy loss or KL divergence, this is okay.

The network has 1581 parameters.

This seems too low.

In the first case it likely is overfitting (somewhat intentionally), and while this isn’t ideal in the short term, I’d like to see that same ability to learn in the unpadded case.

Yes, this is how I would have done it too. To make the model overfit you probably need more model parameters.

I got rid of the XY channels, but it doesn’t seem like they were making a difference in the unpadded case.

I agree that 1581 parameters is low, but it shouldn’t be “too low” considering that it works in the unpadded case as well with a <10 parameter linear classifier, right? In any case, I increased the width of the network by 2 and 4 times, but it didn’t have a noticeable effect.

Btw, thanks so much for your continued help.

@iwasserman It would be super if you could share the code of the network since that could help understand where things may be going sideways.

Ok, I’ve tried to boil the code down to a minimal example. Let me know if anything is unclear. Thanks again.

The code is below, but can also be found in this Gist: https://gist.github.com/isaacwasserman/ae69cfd82fc89b9083720605bcb70e93

import torch
import numpy as np
import time
from PIL import Image
import skimage.segmentation
import skimage.color
import matplotlib.pyplot as plt

# Find fastest device available
device = "cpu"
if torch.cuda.is_available():
    device = "cuda"
elif torch.backends.mps.is_available():
    device = "mps"

def initial_labels(image, d, n_segments, compactness=10, sigma=1):
    """Generates patch-level labels for an image using SLIC

        image (ndarray): image represented by (H,W,C) array
        d (int): number of patches per dimension to assign labels to; function will return d^2 labels
        n_segments (int): number of segments to generate
        compactness (int, optional): compactness parameter passed to SLIC. Defaults to 10.
        sigma (int, optional): sigma parameter passed to SLIC. Defaults to 1.

        tensor: softmaxed labels for each patch in the image (d^2, n_segments)
        ndarray: the full resolution segmentation
    seg = skimage.segmentation.slic(image,
                                    n_segments=n_segments, compactness=compactness, sigma=sigma,
                                    enforce_connectivity=False, convert2lab=True)
    while len(np.unique(seg)) > n_segments:
        # count number of pixels in each segment
        segments, counts = np.unique(seg, return_counts=True)
        # find smallest segment
        smallest1 = segments[np.argmin(counts)]
        # find second smallest segment
        counts[smallest1] = np.max(counts)
        smallest2 = segments[np.argmin(counts)]
        # merge smallest segments
        seg[seg == smallest1] = smallest2

    t = torch.tensor(seg).unsqueeze(0).unsqueeze(0).float()
    # bin the image
    kernel_width = image.shape[0] // d
    kernel_height = image.shape[1] // d
    regions = torch.nn.functional.unfold(t, (kernel_width, kernel_height), stride=(kernel_width, kernel_height), padding=0)
    regions = regions.permute(0,2,1).squeeze().to(torch.int64).squeeze(0)
    # count occurences of each segment in each bin
    labels = torch.nn.functional.one_hot(regions, n_segments).float()
    labels = torch.sum(labels, dim=1)
    labels = torch.nn.functional.softmax(labels, dim=1)
    return labels, seg

class GNEMNet(torch.nn.Module):
    def __init__(self, use_padding=True, patch_size=(32,32), k=10, n_filters=16, dropout=0.2):
        """FCN architecture which operates on patches rather than the entire image

            patch_size (tuple, optional): shape of input patches. Defaults to (32,32).
            k (int, optional): number of output channels (segments). Defaults to 10.
            n_filters (int, optional): number of filters/channels in the middle of the network. Defaults to 16.
            dropout (float, optional): amount of dropout during training. Defaults to 0.2.
        super(GNEMNet, self).__init__()
        self.k = k
        self.n_input_channels = 3
        self.padding = 1 if use_padding else 0
        padding_compensation = -4 + 4 * self.padding
        self.conv1 = torch.nn.Conv2d(self.n_input_channels, n_filters, 3, padding=self.padding)
        self.BN1 = torch.nn.BatchNorm2d(n_filters)
        self.dropout1 = torch.nn.Dropout(dropout)
        self.conv2 = torch.nn.Conv2d(n_filters, 1, 3, padding=self.padding)
        self.BN2 = torch.nn.BatchNorm2d(1)
        self.dropout2 = torch.nn.Dropout(dropout)
        self.output = torch.nn.Conv2d(1, k, (patch_size[0] + padding_compensation, patch_size[1] + padding_compensation), k)
        self.tile_size = patch_size
        self.train_indices = None
        self.use_subset = True
        self.unfold_stride = 1
        self.make_patches = True

    def forward(self, x):
        x = self.conv1(x)
        x = self.BN1(x)
        x = torch.nn.functional.tanh(x)
        x = self.dropout1(x)
        x = self.conv2(x)
        x = self.BN2(x)
        x = torch.nn.functional.tanh(x)
        x = self.dropout2(x)
        x = self.output(x)
        return x

class PatchDL():
    def __init__(self, image_tensor, initial_labels, d, batch_size):
        """Dataloader for image patches

            image_tensor (tensor): input image represented by a (1, C, H, W) tensor
            initial_labels (tensor): initial labels for each trainining patch represented by a (d^2, n_segments) tensor
            d (_type_): _description_
            batch_size (_type_): _description_
        self.image_tensor = image_tensor
        self.labels = initial_labels
        self.d = d
        self.patch_size = (image_tensor.shape[2] // d, image_tensor.shape[3] // d)
        self.patches = torch.nn.functional.unfold(self.image_tensor, kernel_size=self.patch_size, stride=1, dilation=1, padding=0)
        self.patches = self.patches.view(self.image_tensor.shape[1], self.patch_size[0], self.patch_size[1], -1).permute(3, 0, 1, 2).to(device)
        self.train_indices = torch.cat([torch.arange(self.d) * self.patch_size[0] + ((self.image_tensor.shape[2] - (self.patch_size[0] - 1)) * self.patch_size[1] * row) for row in range(d)])
        self.train_indices = torch.stack([self.train_indices, torch.arange(self.d * self.d)], dim=1)
        self.batch_size = int(batch_size * len(self.train_indices))

    def get_train_batch(self):
        """Returns a random batch of patches with their corresponding labels from the "training set". The training set is a subset of the d^2 patches in the image that don't overlap.

            tensor: batch of patches represented by a (batch_size, C, H, W) tensor
            tensor: batch of labels represented by a (batch_size, n_segments) tensor
        batch_indices = self.train_indices[torch.randperm(self.train_indices.shape[0])[:self.batch_size]]
        patches = self.patches[batch_indices[:, 0]]
        labels = self.labels[batch_indices[:, 1]]
        return patches, labels
    def get_inference_set(self):
        """Returns all patches in the image

            tensor: all patches represented by a (d^2, C, H, W) tensor
        patches = self.patches
        return patches

class GNEMS_Segmentor:
    def __init__(self, use_padding=True, d=16, n_filters=16, dropout=0.2, lr=0.001, subset_size=0.5, sigma=1, compactness=0.1, k=18, epochs=40):
        """Segmentor class

            use_padding (bool, optional): whether or not to use padding in the CNN. Defaults to True.
            d (int, optional): square root of the number of patches to divide the image into. Defaults to 16.
            n_filters (int, optional): number of filters/channels in the middle of the CNN. Defaults to 16.
            dropout (float, optional): amount of dropout used during training. Defaults to 0.2.
            lr (float, optional): learning rate for network. Defaults to 0.001.
            subset_size (float, optional): percentage of training set to use in each batch. Defaults to 0.5.
            sigma (int, optional): sigma parameter passed to SLIC. Defaults to 1.
            compactness (float, optional): compactness parameter passed to SLIC. Defaults to 0.1.
            k (int, optional): number of segments to divide the image into. Defaults to 18.
            epochs (int, optional): number of times the training loop should run. Defaults to 40.
        self.d = d
        self.n_filters = n_filters
        self.dropout = dropout
        self.lr = lr
        self.subset_size = subset_size
        self.net = None
        self.slic_segments = k
        self.sigma = sigma
        self.compactness = compactness
        self.k = k
        self.initial_labels = None
        self.epochs = epochs
        self.initial_segmentation = None
        self.intermediate_cross_entropies = []
        self.image_size = None
        self.patch_size = None
        self.use_padding = use_padding

    def fit(self, image):
        """Fits the network to the image

        In this minimal example, the fit method standardizes the image, generates labels using `inital_labels()` (SLIC), and trains the network in a supervised manner, using cross entropy loss.

            image (ndarray): input image represented by a (H,W,C) array
        self.image_tensor = torch.tensor(skimage.color.rgb2lab(image), dtype=torch.float32).to(device).permute(2, 0, 1).unsqueeze(0)
        self.image_size = self.image_tensor.shape[-2:]
        self.patch_size = (self.image_size[0] // self.d, self.image_size[1] // self.d)

        # standardize image to [-1,1]
        cur_min = self.image_tensor.min()
        cur_max = self.image_tensor.max()
        self.image_tensor = (2 * (self.image_tensor - cur_min)/(cur_max - cur_min)) - 1

        # create labels using SLIC
        self.initial_labels, self.initial_segmentation = initial_labels(image, self.d, self.k, sigma=self.sigma, compactness=self.compactness)
        self.initial_labels = self.initial_labels.argmax(dim=1).to(device)

        # create dataloader
        self.dataloader = PatchDL(self.image_tensor, self.initial_labels, self.d, self.subset_size)

        # Initialize CNN
        self.net = GNEMNet(use_padding=self.use_padding, patch_size=self.patch_size, n_filters=self.n_filters, dropout=self.dropout, k=self.k).to(device)

        # Initialize optimizer and loss function
        cross_entropy = torch.nn.CrossEntropyLoss()
        optimizer = torch.optim.Adam(self.net.parameters(), lr=self.lr)

        # Train CNN
        for epoch in range(self.epochs):
            patches, labels = self.dataloader.get_train_batch()
            outputs = self.net(patches).squeeze(-1).squeeze(-1)
            loss = cross_entropy(outputs, labels)
    def predict(self):
        """Predicts the segmentation of the image

        Runs all possible patches in the image through the network, forms the output into a single image, uses bilinear interpolation to upscale the output to the original image size, and returns the greatest channel index for each pixel.

            ndarray: segmentation represented by a (H,W) array
        patches = self.dataloader.get_inference_set()
        collage_width = np.sqrt(patches.shape[0]).astype(int)
        # Get predictions for each patch
        outputs = self.net(patches).detach().squeeze(-1).squeeze(-1).unsqueeze(0)
        # Reshape predictions into an image
        outputs = outputs.permute(0, 2, 1)
        outputs = outputs.reshape(1, self.k, collage_width, collage_width)
        # Upscale the image slightly to the original image size
        outputs = torch.nn.functional.interpolate(outputs, self.image_tensor.shape[2:])
        # Return greatest channel index for each pixel
        outputs = outputs.argmax(1).squeeze(0).cpu().numpy()
        return outputs

# Get an image
image_url = "https://hips.hearstapps.com/hmg-prod/images/dog-puppy-on-garden-royalty-free-image-1586966191.jpg"
!wget -nc {image_url}
image_path = image_url.split("/")[-1]
image = np.array(Image.open(image_path).resize((512, 512)))[:,:,:3]

# Set hyperparameters
k = 18             # number of segments
d = 64             # number of patches across image (number of patches = d^2)
lr = 0.01          # learning rate
subset_size = 0.5  # batch size as a fraction of total number of patches
epochs = 40        # number of epochs per iteration
USE_PADDING = True # whether to use padding in the CNN

# Initialize and fit segmentor
segmentor = GNEMS_Segmentor(use_padding=USE_PADDING, k=k, d=d, subset_size=subset_size, lr=lr, epochs=epochs, n_filters=16, compactness=0.01, sigma=1)

# Predict segmentation
seg = segmentor.predict()

# Plot loss curve

# Plot input image
plt.title("Input Image")

# Plot initial segmentation by SLIC
plt.imshow(segmentor.initial_segmentation, cmap="tab10")
plt.title("Initial Segmentation")

# Plot initial labels (downsampled SLIC segmentation)
plt.imshow(segmentor.initial_labels.to("cpu").numpy().reshape(d,d), cmap="tab10")
plt.title("Initial Patch Labels")

# Plot predicted segmentation
plt.imshow(seg, cmap="tab10")

Thanks for sharing the code @iwasserman - I’m wondering why your bottleneck layer has a single channel? Could you try increasing it to 32 at least and then see if that helps?
Please could you help me understand the use a stride of size k in the conv self.output, which seems to be the number of output channels?

1 Like

Good catch. The stride of K is a holdover from a previous version of the model; this layer doesn’t actually do any convolving because its input is the same shape as its kernel, so the stride doesn’t effect it.

I tried changing the dimension of the bottleneck and I got very strange results.

With padding on, I got this when the bottleneck channel dimension was 2:

I got this when it was 3:

And I got things that looked like this when it was 4 and higher:

Could this be related?

@iwasserman Are these predictions for the same image? If so, something is seriously wrong. Could you check if your network is unknowingly using broadcasting anywhere in an unintended place? This typically happens when any one tensor dimension is 1 and the other tensor has a dimension value > 1.

Hi @dhruvbird , I think the really strange tiling behavior above was actually a bug in the MPS backend. I tried it in a CUDA environment, not only did this artifacting disappear, but the unpadded network worked (although not quite as well as the padded version). Thanks so much.

1 Like

I’m glad you’re on your way @iwasserman! :slight_smile:
